The Tractor-pulled Compost Turner

A tractor-driven compost turner is an efficient and economical method for composting organic waste. Designed to be connected to a tractor’s rear hitch and driven by its PTO (power take-off) system, it rapidly turns the organic waste windrow, eliminating harmful substances in the manure.

Working Principle

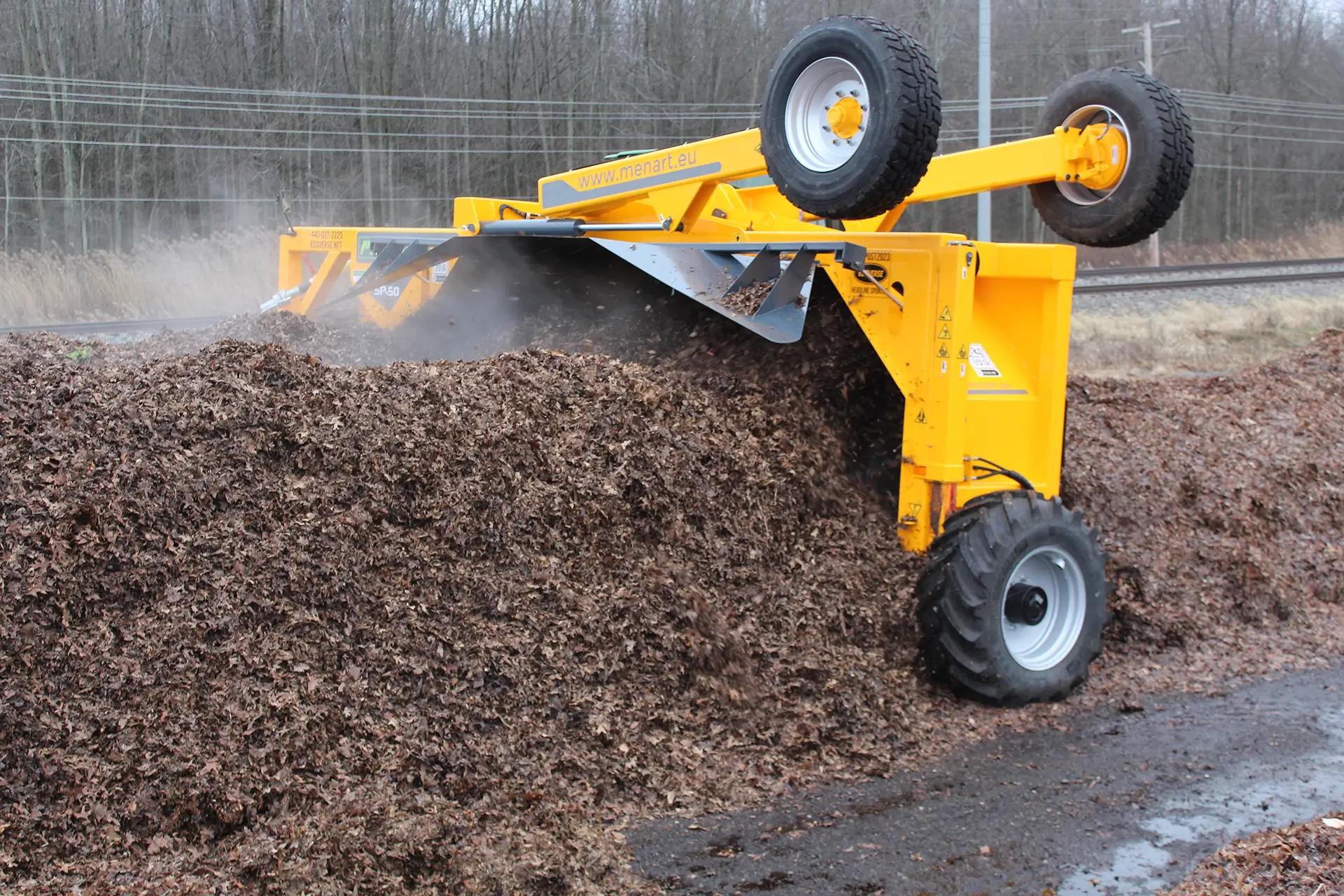

The device is attached to the rear of a tractor via a standard hitch and powered by the tractor’s PTO (power take-off) system. As the tractor moves along the windrow, the towed composter moves across the compost, turning the material regularly. This ensures optimal oxygen penetration and even distribution of moisture and fermentation microorganisms, allowing for rapid decomposition of organic waste and eliminating pathogens, pest eggs, and weed seeds. This is, in effect, a windrow composting method (ground fermentation), which is why it is called a towed windrow turner.

If you are interested in this or other fertilizer equipment, please contact us today.

Tractor-pulled Compost Turner Components

Parameter Table

Model	2500	Motivation	≥80 HP
Turning Span	≤ 2.5 m	Tunring blade size	≤585 mm
Turning Height	≤ 0.8 m	Turing blade speed	600-800 r/min
Capacity	800-1400 m3/h	Feed Material Size	≤200 mm
Windrow Space	0.8-1 m	Diemensions	4500015001000 mm
Moving Speed	5-10 m/min	Walking Method	Tractor driving
Rotary Speed	2400 r/min	Water tank or not	Yes

Features

High Efficiency – Increases composting speed by improving aeration and microbial activity.
Easy Operation & Mobility – Simple to attach, detach, and transport across different composting sites.
Versatile Applications – Suitable for various organic waste materials, including livestock manure, agricultural residues, and municipal waste.
