Rotary Drum Dryer Machine

The Rotary Drum Dryer Machine

Fertilizer granules from granulators typically contain 6%-16% or even higher moisture content. They require drying to meet moisture standards for storage and fertilization. Currently, the most commonly used drying equipment is the rotary dryer.

Working Principle

VEST’s rotary dryers can be customized to meet individual customer requirements for optimal results.

The operating principle of a rotary drum dryer is to dry the material by tumbling it within a rotating drum under the action of dry air.

A rotary drum dryer is an inclined horizontal rotating drum with a sealed structure consisting of a support system, a transmission mechanism, a drum body, and a feed and discharge mechanism.

The drum is slightly tilted horizontally to facilitate the passage of material through the dryer using gravity. As the drum rotates, a lifting mechanism picks up the material and throws it into the airflow, maximizing heat transfer efficiency. When processing lumps, the dryer’s rotation further rounds and smoothes the granules.

 If you are interested in this or other fertilizer equipment, please contact us today.

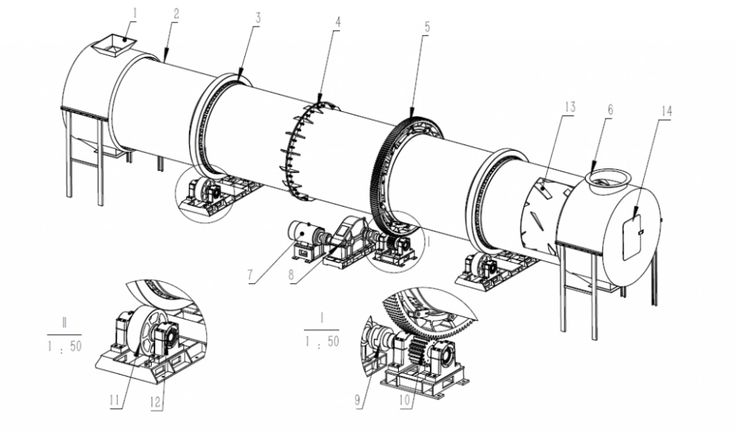

Rotary Drum Dryer Machine Components

Parameter Table
