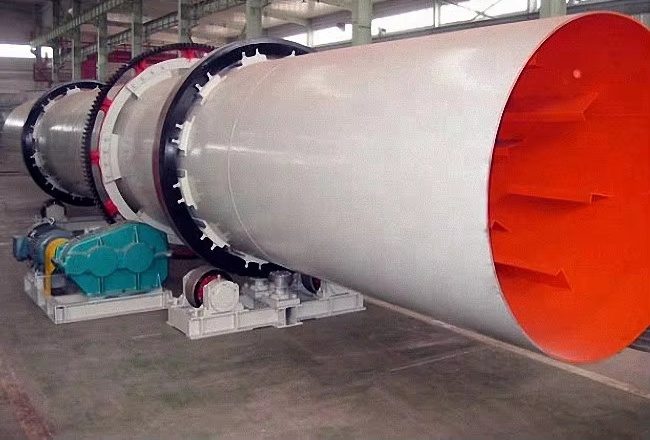

The Rotary Drum Cooler Machine

The material coming out of the dryer is too hot to be screened or packaged directly and must be cooled before being screened or packaged. Using a Rotary Drum Cooler Machine can lower the temperature of organic compost and further reduce the moisture content of the raw material, thereby improving pellet strength and appearance quality.

Working Principle

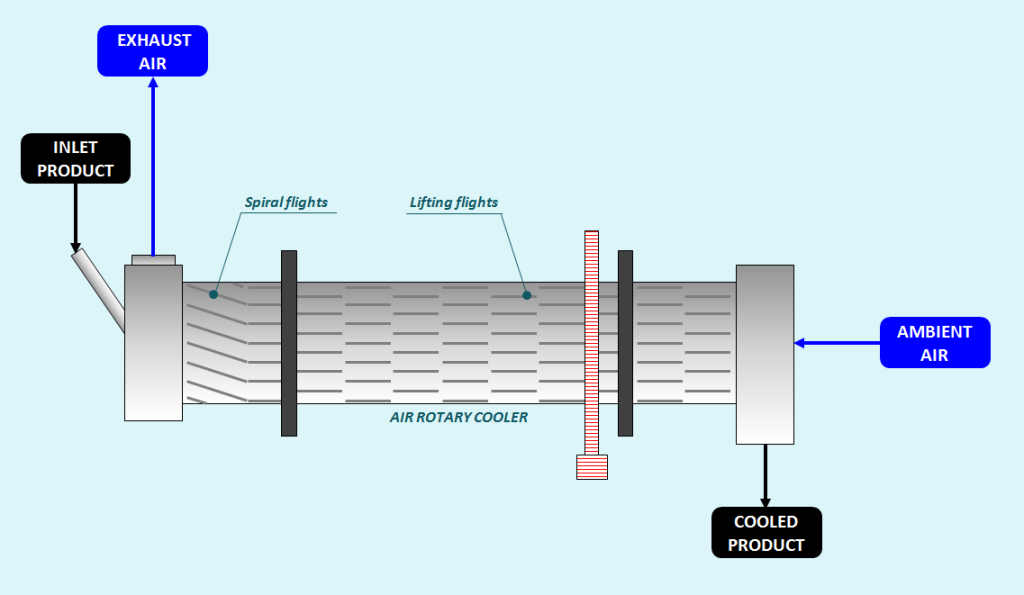

The rotary drum cooler is an inclined horizontal rotating drum with a sealed structure consisting of a support system, a transmission mechanism, a drum body, and a feed and discharge mechanism.

After entering the cooler through a feed pipe, the dried granular fertilizer rotates with the drum. Lifting plates inside the drum evenly distribute the material downward, forming a material curtain. Cold air drawn from the drum head enters the cooler, exchanging heat with the material and cooling it. This cool air removes heat from the fertilizer and reduces its temperature to below 40°C.

If you are interested in this or other fertilizer equipment, please contact us today.

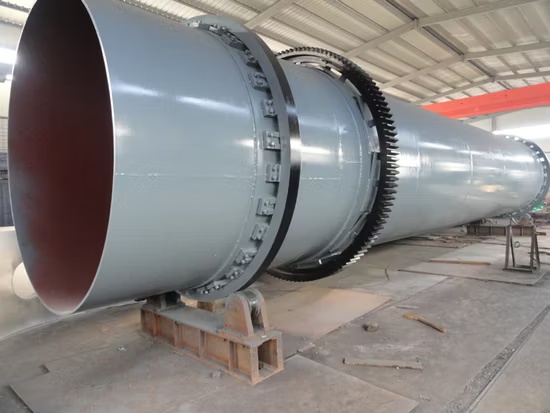

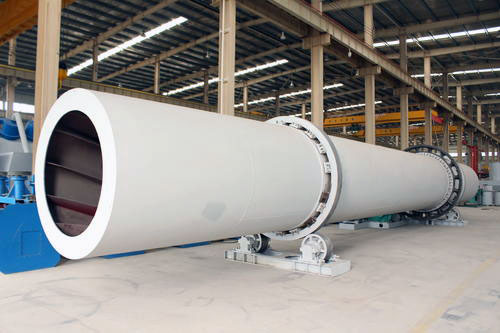

Rotary Drum Cooler Machine Components

Parameter Table

Model	Diameter (mm)	Length (mm)	Overall dimension after installation(mm)	Speed (R / min)	Motor model	Power (kw)
VRC10100	1000	10000	11000x1600x2700	4.6	Y132M-4	7.5
VRC12120	1200	12000	13000x2900x3000	4.6	Y132M-4	7.5
VRC15120	1500	12000	16500x3400x3500	5	Y160L-4	15
VRC15150	1500	15000	19600x3300x4000	5	Y160L-4	15
VRC18160	1800	18000	21600x3650x4400	5	Y200M-6	18.5
VRC20200	2000	22000	23800x3800x4800	5	Y200M-6	22

Applications & Materials

The rotary cooler machine is the most important cooling equipment in industrial cooling. It can handle a variety of raw materials and it is suitable for almost any industry requiring industrial cooling solutions, such as:
