Organic Fertilizer Polishing Machine

China leading manufacturer of Organic Fertilizer Polishing Machine, VEST design high quality, efficiency, and longevity fertlizer production line for fertilizer plants with low price and cost.

Send Inquiry

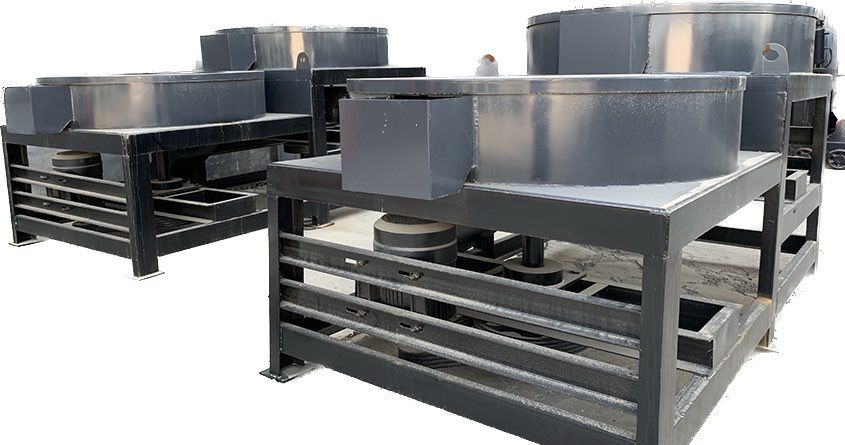

The Organic Fertilizer Polishing Machine

The organic fertilizer polishing machine is our company’s latest development. It can be used in conjunction with a disc granulator, a new organic fertilizer granulator, a compound fertilizer granulator, a flat film granulator, or a counter-pressure granulator to enhance the appearance of fertilizer granules.

Working Principle

After entering the polishing machine, the fertilizer granules are polished by centrifugal force as the turntable rotates. Qualified fertilizer granules enter the next polishing cylinder and ultimately proceed to the next process. Meanwhile, fertilizer powder is not discharged through the outlet.

We offer not only two-stage fertilizer polishers but also three-stage equipment. If you are interested in this or other fertilizer equipment, please contact us today.

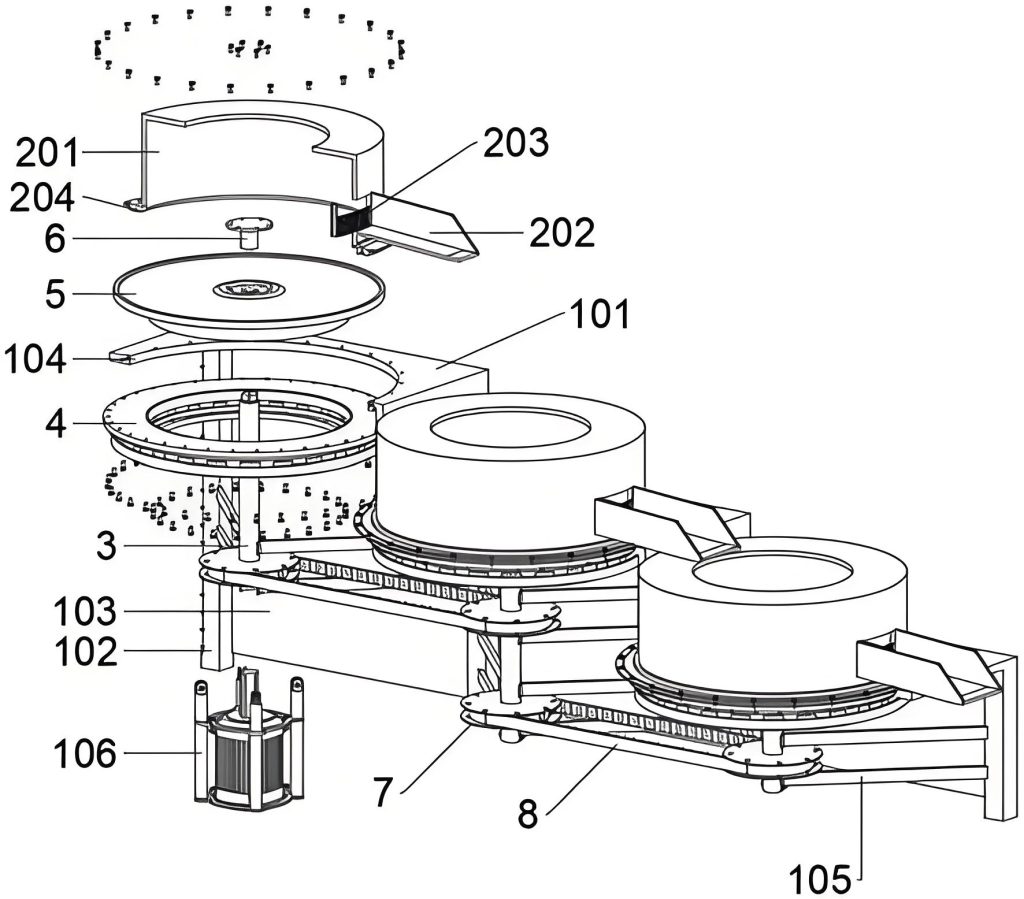

Organic Fertilizer Polishing Machine Components

Parameter Table

Model	Swing disc diameter(mm)	Power(kw)	Overall dimension(mm)	Output (t / h)
PYS800	800	5.5*2	1700x850x1400	1-1.5
PYS1000	1000	7.5*2	2100x1100x1400	1.5-2.5
PYS1200	1200	7.5*2	2600x1300x1500	2.5-3.5
PYS1500	1500	11*2	3100x1600x1600	3.5-4.5

Features

Product particle size is uniform. After multiple shot blasting steps, the material is discharged from the outlet, resulting in uniform, smooth particles.
High output and flexible layout. Single or multiple granulators can be used simultaneously, eliminating the process complexity associated with conventional granulator systems requiring circular polishers.
Highly adaptable to various environments, it offers low costs and high efficiency.

Applications

The twin-roll extrusion granulator is suitable for a variety of materials, primarily divided into two categories: fertilizer materials and non-fertilizer materials.

The bio-organic granulation fertilizer which makes peat, lignite, organic fertilizer sludge, straw as raw material
Organic granulation fertilizer which makes chicken manure as raw material
Cake fertilizer which makes soy-bean cake as raw materia
Mixed feed which makes corn, beans, grass meal as raw material
Bio-feed which makes crop straw as raw material
