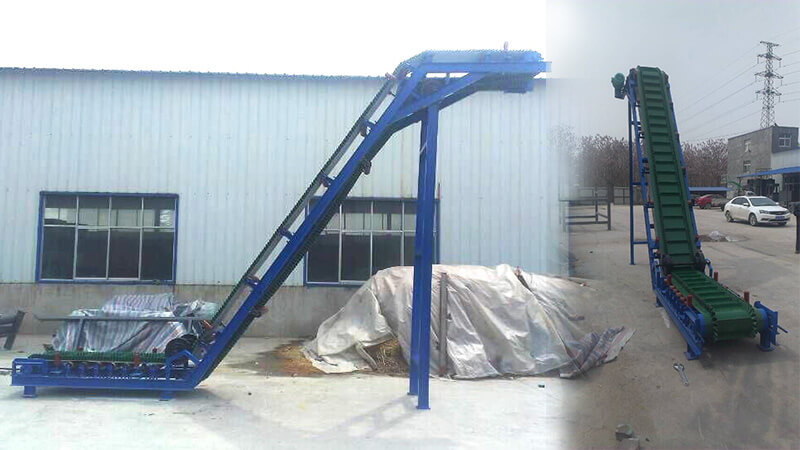

The Large Angle Belt Conveyor

The large angle belt conveyor is a specialized type of conveyor system designed to efficiently transport materials at steep angles, typically ranging from 30 to 90 degrees. This type of conveyor is commonly utilized in applications where space is limited and materials need to be transported vertically or at a steep incline.

Working Principle

The high angle belt conveyor is a kind of belt conveyor that can convey materials at a large inclined angle. Its basic principle still relies on the friction between the belt and the driving pulley to drive the belt to run, thus driving the material on the belt to move. However, compared with the ordinary belt conveyor, it adopts a special design, which enables it to convey materials stably under the condition that the inclination angle is usually greater than 18° (the maximum inclination angle of the ordinary belt conveyor is generally around 18°).

If you are interested in this or other fertilizer equipment, please contact us today.

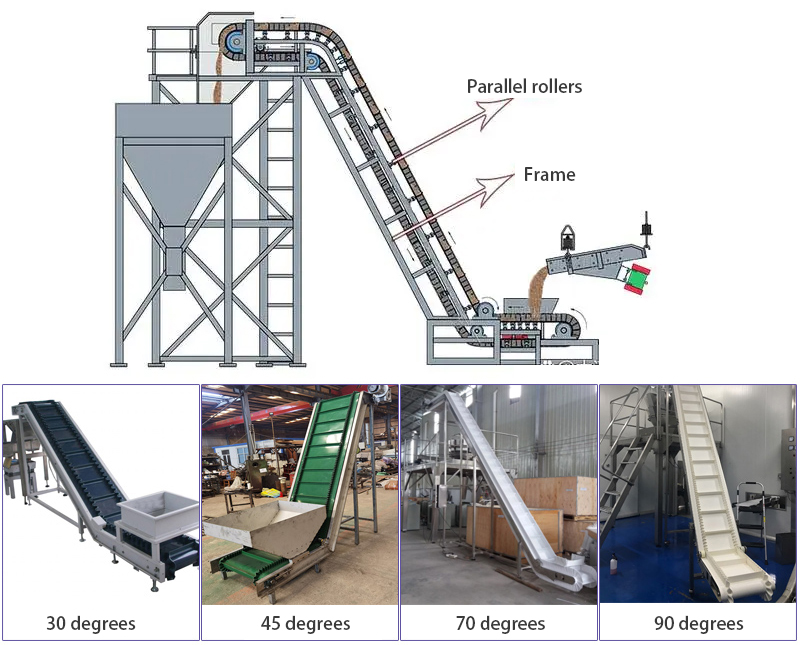

Various Angles Of Large Angle Belt Conveyor

Features of Large Angle Belt Conveyor

Belt Selection : The belt should have high tensile strength, abrasion resistance, and flexibility to accommodate the corrugated sidewall and cleats.

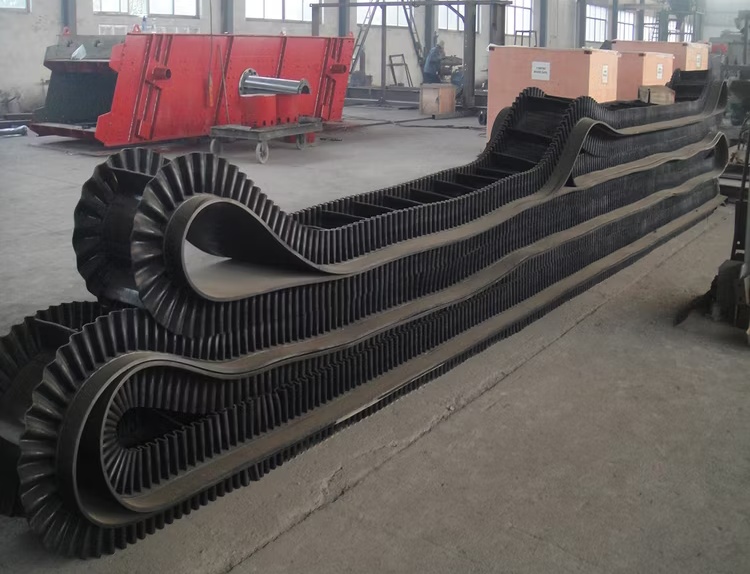

Sidewall Configuration : The sidewalls of the conveyor belt are corrugated to provide rigidity and prevent spillage of materials.
Cleat Design : Cleats are attached to the belt at regular intervals to prevent material from sliding back.
Belt Support : These can include idler rollers, impact beds, and skirting systems. The support structures are designed to minimize belt wear and reduce spillage.
Chutes and Transfer Points : TProper design of chutes and transfer points is essential to minimize material spillage.
