Granular Fertilizer Packing Machine

China leading manufacturer of Granular Fertilizer Packing Machine, VEST design high quality, efficiency, and longevity fertlizer production line for fertilizer plants with low price and cost.

Send Inquiry

The Granular Fertilizer Packing Machine

Granular fertilizer packing machine for granule materials in flour, starch, feed, fertilizer, food, chemical industry, light industry, building materials and other industries.

If you are interested in this or other fertilizer equipment, please contact us today.

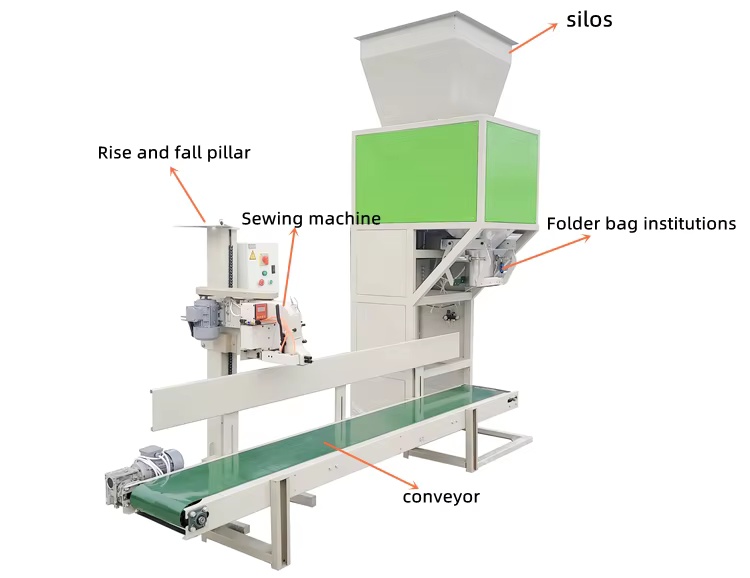

Granular Fertilizer Packing Machine Components

Parameter Table

Material	Granule
Weighing Range(kg)	20-50kg
Weighing Speed(bag/h)	500
Dividing value(g)	20
Level of accuracy	0.2
Power Supply	Three-phase four-wire: AC 380V 220V 50Hz (User self-sufficiency) 50Hz (User self-sufficiency)
Power Consumption	0.4~0.6Mpa 1m3/h
Gas Source	It is recommended to select an air compressor with a displacement of 0.25 m3/minor more.
Gas Consumption	0.4～0.6Mpa 1m3/h
Working Environment	-20℃～＋40℃
Sensor	ILGC-200KG-BA (KeLi Electric)
Computer Control Instrument	Intelligent computer controller YH-3D YH-D8
Dust Removal	Reserve dust outlet
Manufacturing Materials	Contact with the material is made of carbon steel, good fluidity, wear resistance, corrosion resistance, easy to clean.
Feeding Method	Arc valve 3 feed feed
Installation size(mm)	312015801350
Installation Method	The scale body is directly docked to the storage bin and does not need to be added as an auxiliary steel frame. Occupied floor space is small and easy to install.

Features of Granular Fertilizer Packing Machine

Accuracy : High precision weighing controller, good reliability. Good integrity, small floor area, flexible and convenient installation.
Environmental protection operation : Closed inner circulation system, improve the working environment, and protect the health of employees.
The structure if reasonable : The structure is compact, the volume is small, and can be made into a fixed or mobile body according to the requirement of the user.
