Crawler Type Compost Turner

China leading manufacturer of Crawler Type Compost Turner, VEST design high quality, efficiency, and longevity fertlizer production line for fertilizer plants with low price and cost.

Send Inquiry

The Crawler Type Compost Turner

Crawler type compost turner is a hot-selling product for organic fertilizer compost making. It adopts a windrow composting method, which can greatly reduce your expenses on infrastructure building.

Working Principle

Applicable Materials: Chicken manure, cattle dung, sheep manure, pig manure, other animal wastes and carbonaceous materials

The crawler-type organic compost turner integrates the function of crushing materials in the late stage of fermentation. As the materials are continuously moved and turned, the blade shaft can effectively break up the lumps formed in the raw materials during the fermentation process. No additional crusher is required during the production process, which greatly improves work efficiency and reduces costs.

(1) This product has adopted soft start for turning and separation. (Other similar domestic products use iron hard clutches, which seriously damage chains, bearings, shafts, etc.).

(2) The operation is flexible and simple, and the distance between the blade shaft and the ground is adjusted by a hydraulic system.

(3) Composters with a horsepower of more than 120 can be customized according to user requirements.

If you are interested in this or other fertilizer equipment, please contact us today.

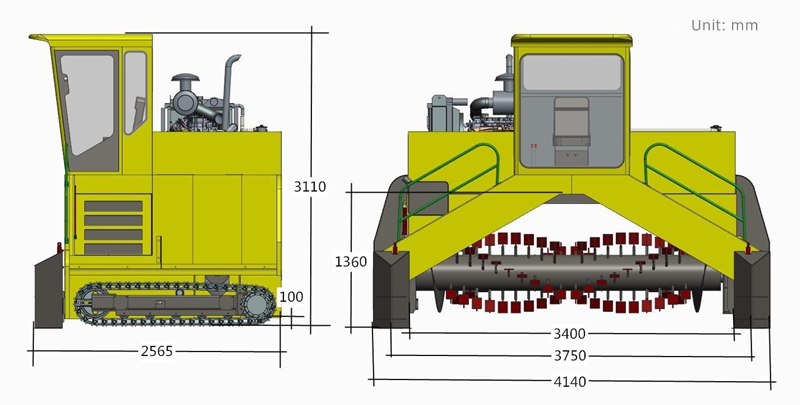

Crawler Type Compost Turner Components

Parameter Table

Model	VCT-2400	VCT-2600	VCT-2800	VCT-3000
Turning Width (mm)	2400	2600	2800	3000
Turning Depth(mm)	600-1000	1000-1300	1100-1400	1300-1500
Windrow Spacing(mm)	800-1000	800-1000	800-1000	800-1000
Maximum Diameter ofMaterial Particles(mm)	250	250	250	250
Power(horsepower)	85	116	123	156
Working Knife Diameter(mm)	400	500	500	500
Working Speed (m/min)	6-10	6-10	6-10	6-10
Capacity (m³/h)	500-700	1000-1200	1100-1300	1500

Features

Efficiency
The tracks enable the machine to move along the compost pile, covering a larger area and ensuring thorough turning and mixing of the material. This helps maximize the organic matter’s exposure to oxygen, enhancing decomposition and accelerating the composting process.
Large Capacity
Crawler compost turners are available in a variety of sizes and configurations to suit different composting operations.
Adjustable Turning and Agitation Intensity
The turning mechanism of a crawler compost turner is typically adjustable to control the depth and intensity of the turning. This allows the composting process to be customized based on the specific requirements of the material and the desired compost quality.
