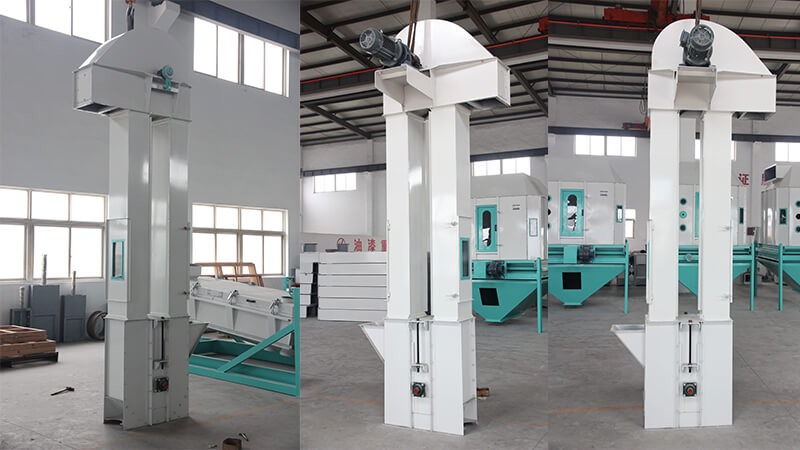

The Bucket Elevator

Bucket elevator is a mechanical equipment used for continuously lifting bulk materials in the vertical direction, widely used in industries such as mining, building materials, chemical, and grain, for lifting bulk or small pieces of materials such as coal, ore, cement, and grain.

Working Principle

Feed: The material enters the bottom hopper through the feed inlet.

Lifting: The driving device is activated to drive the hopper upwards along the guide rail or groove through a chain or belt, and the material rises together with the hopper.

Unloading: When the hopper reaches the upper part, due to the action of gravity or centrifugal force, the material is discharged from the hopper and discharged through the discharge port.

Return: The empty hopper returns to the feeding port along the other side guide rail, preparing for the next cycle.

If you are interested in this or other fertilizer equipment, please contact us today.

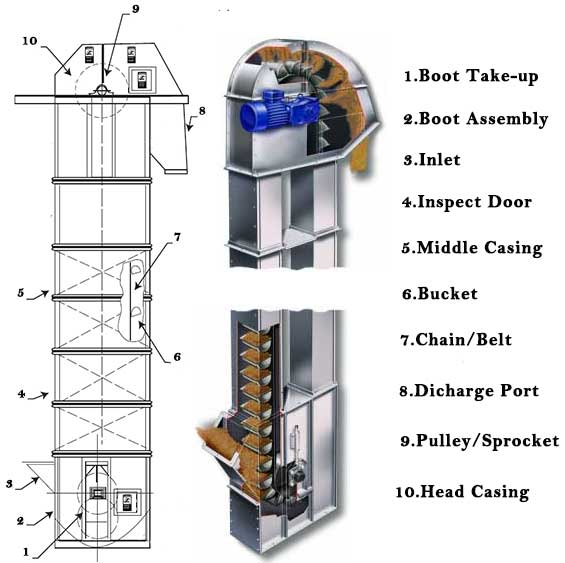

Bucket Elevator Components

Features of Bucket Elevator

Large lifting height : capable of achieving high vertical lifting height, suitable for high-rise buildings or elevated material transportation.
High efficiency improvement : Through continuous hopper lifting, efficient vertical transportation of materials is achieved.
Strong adaptability : able to handle various scattered or small materials, with a wide range of adaptability.
Good sealing : The enclosed lifting process reduces material loss and dust flying.
Compact structure : Vertical layout saves floor space and is suitable for production environments with limited space.
Easy to maintain : The structure is relatively simple, making it easy to maintain and repair.
